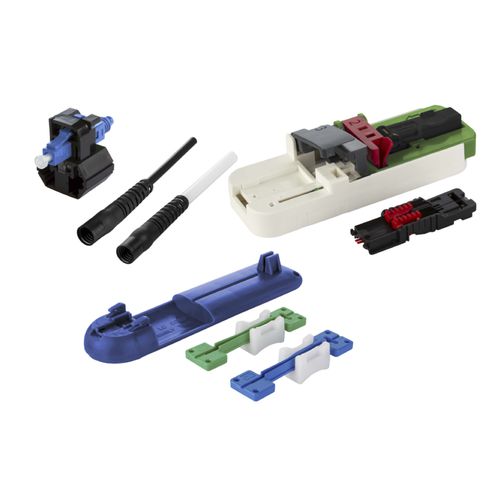

Data connector 1509QKJO002C-E

hybridfiber opticsfiber optic

・Field-attachable fiber optic connector for single-mode technology ・with hybrid technology: refractive index gel plus opto-elastomer guarantee very good and constant optical values ・no polishing, no gluing during assembly on site ・simple, easy to learn, fast and cost-effective installation in less than two minutes ・Available with connector types LC and SC for singlemode (UPC and APC) ・plug kits for FO fibers with Ø 0.25 and Ø 0.9 mm ・plug kits for fibre optic cables with Ø 2.0 and Ø 3.0 mm ・the plug can be assembled up to three times ・every plug has a serial number, so that traceability is possible at any time ・Included in the scope of delivery depending on the variant: ・a maintenance-free separator (Cleaver). It provides an oblique cut so that high return loss values are achieved. The Cleaver can be used up to 200 times. ・a cable assembly kit for easy cable assembly ・a fiber guide for easy insertion of the fiber into the connector ・fields of application: ・for FTTH and FITH connections, repairs in the field, in areas which are difficult to access or limited in space and for direct mounting on components ・Versions for fibers: 10 pieces without tools / 20 or 100 pieces with Cleaver and fibre guide ・Variants for cables: 10 pieces without tools / 20 or 100 pieces with Cleaver, cable assembly set and fibre guide
