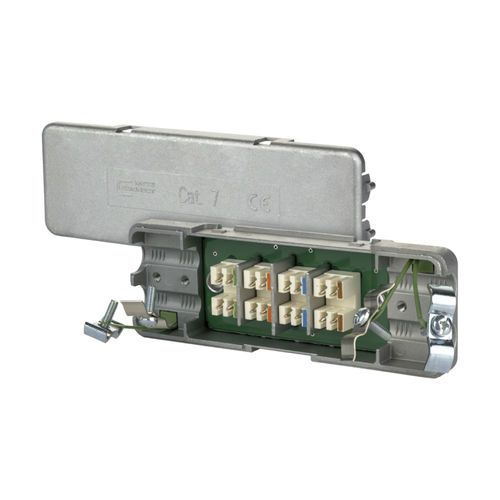

Cable connector 130863-Edatashieldedcast-zinc
Add to favorites
Compare this product
Characteristics
- Type
- data
- Electrical characteristics
- shielded
- Material
- cast-zinc
- Domain
- for cables
- Protection class
- IP67
- Other characteristics
- shielded
- Voltage
60 V
- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
・for connecting/extending data cables up to Cat.7A
・in combination with Cat.6A to Cat.8 cables and Cat.6A connection technology, class EA according to ISO/IEC 11801 is fulfilled
・connection of data lines AWG 26/1 to 22/1 (solid wire)
・cable feed from one or two sides
・cable sharing, i.e. splitting one 8-wire cable into two 4-wire cables (one cable tie required each on input and output side)
・fully shielded metal housing
・strain relief and separate captive 360° shield connection
・2 bore holes for wall mounting
・IP67 protection due to special shrink tube
