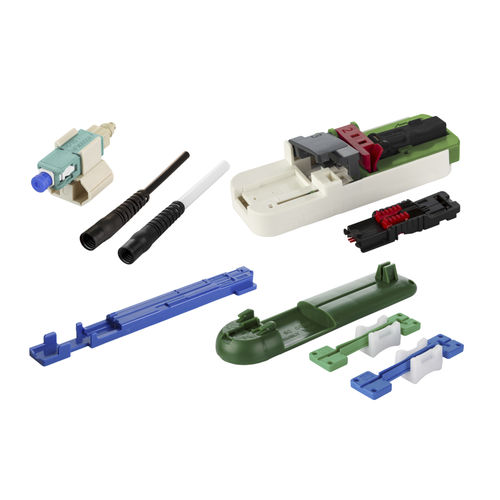

Data connector 1509MKEO010C-E

fiber opticsfemalefor FTTH

・Field-attachable fiber optic connector for multimode technology ・With hybrid technology: refractive index gel plus Opto-Elast guarantee very good and constant optical values. ・No polishing, no gluing during assembly on site. ・Simple, easy to learn, fast and cost-effective installation in less than two minutes. ・Available with connector types LC and SC. ・Lug kits for FO fibers with Ø 0.25 and Ø 0.9 mm ・Plug kits for fibre optic cables with Ø 2.0 and Ø 3.0 mm ・The plug can be assembled up to three times. ・Every plug has a serial number, so that traceability is possible at any time. ・Included in the scope of delivery depending on the variant: ・A maintenance-free cutting device (cleaver), designed for a diagonal cut. The cleaver can be used up to 200 times. ・A cable assembly kit for easy cable assembly ・A fiber guide for easy insertion of the fiber into the connector ・Fields of application: for FTTH and FITH connections, repairs in the field and in areas which are difficult to access or limited in space and for direct mounting to components ・Versions for fibers: 10 pieces without tools / 20 or 100 pieces with Cleaver and fibre guide ・Variants for cables: 10 pieces without tools / 20 or 100 pieces with Cleaver, cable assembly set and fibre guide
