Cable shield processing machine CS series

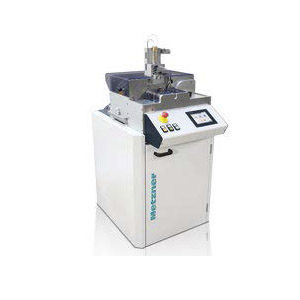

The semi-automatic cable shield processing machines »Metzner CS-10« and »Metzner CS-20« are patented solutions for quick and extremely precise processing of cable shields and cable braids. Developed for cable shield processing in hybrid and electric vehicles, this machine uses a unique process to provide complete cable shield processing: Opening the cable shield, cutting, folding down and stripping the outer sheath or inner conductor. With the »CS-10« and »CS-20« Metzner offers two processing concepts that define itself by the outer diameter of the cable. For all cables up to 20 mm in diameter the shielding braid is opened by a patented procedure before it is cut and everted. Cables with an inner conductor can then be stripped easily. This process is reversed for smaller cables up to 8 mm in diameter: Stripping of the outer sheath first, then opening, everting and cutting of the cable shield. Additionally, a precise cut-to-length is possible for cables up to 8 mm in diameter. All processes are designed to eliminate damaging the sheath, the inner insulation or the shielding braid. The user-friendly control panel can be used to programme many parameters including pull-off length and insertion path. Key Features • Patented process for cable shield machine for cables up to 20 mm diameter • Automatic processing of the cable shielding braid with consistent processing quality • Opening of the cable shield • Cut the cable shield to length and everting the cable shield • Stripping the cable sheath, inner conductor or insulating material • Integrated end cut for cables up to 8mm in diameter • Fast and superior cycle time to similar processing methods
