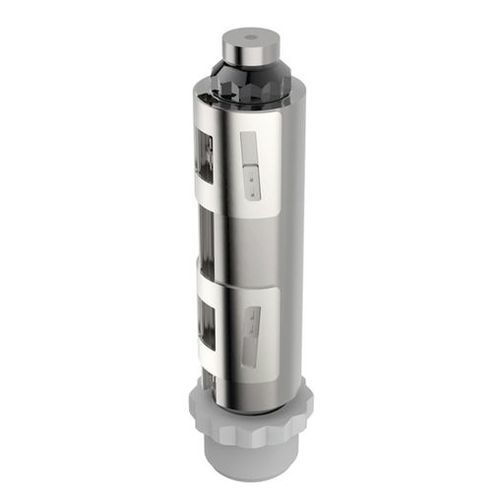

Hot runner nozzle EH 4100 series

for liquidsplastic

The smartFILL shot nozzle is screwed into the hot runner and together they form one unit. This allows easy installation without height adjustment in the injection mould. The ratio of the distance between nozzles to the nozzle length must be taken into account. LESS TEMPERATURE LOSS, MORE APPLICATIONS The melt channel geometry and innovative heating technology enable you to process almost all types of plastic. Even engineering plastics with extremely high processing temperatures can be processed with the new smartFILL. NEW DESIGN PRINCIPLE AND TORPEDO INCREASE THE QUALITY OF PARTS The partitioning and re-merging of the melt takes place in the hot zone of the nozzle. This reduces the appearance of flow lines and thus improves the optical and mechanical quality of the parts. COST SAVINGS IN MOULD PROCUREMENT With the shot version, you can define a stepless nozzle length and adapt it exactly to your space requirements. NOZZLE / DISTANCE SCREWING SET The manifold is screwed to the cavity plate with the distance screwing set. The nozzle is screwed into the manifold and together they form a unit. This results in the following advantages: Quick and easy installation of the hot runner system No height adjustment necessary Plastic-tight sealing between nozzle and manifold
