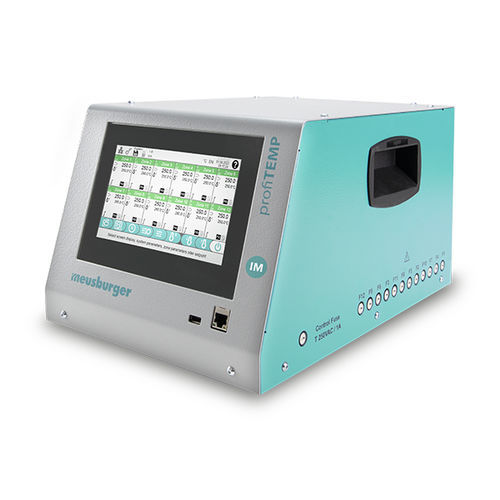

Digital temperature controller profiTEMP IM

PIDhot runnerheating

This compact hot runner controller enables precise temperature control with a shortened heating phase thanks to a fast control algorithm. Tailored to the requirements of mould makers, the control unit for 12 control zones has other advantageous features: Small, handy and powerful hot runner control unit Clear, user-friendly touch screen user interface Short incorporation phase Can be used anywhere – user interface available in 15 languages Extremely compact, lightweight and portable FUNCTIONS PID algorithm optimised for the application Automatic calculation of the control parameters (identification) Each heating output 3450 W (15 A / 230 VAC) 7” touch screen, 15 selectable languages All process information clearly displayed at a glance Zone detail view including trend graph Password-protected access for set-up technicians Alarm overview Temperature monitoring Monitoring of the thermal sensor to detect sensor breakage, polarity reversal and short-circuiting Display of heating currents and power levels of all zones Display of heating currents and power levels per phase and for all zones of the controller Energy meter Heating current monitoring (tolerance, failure, short circuit) Safety shutdown on detection of short-circuit triacs Continuous leakage current measurement Predictive detection of leakages in the mould (process monitoring) Smart Power Limitation – exact limitation of power output in the event of mains connection overload Fully automatic switchover to leading zone mode or manual mode in the event of a defect in the sensor circuit
