Circular formwork Radius

curvedwallsteel

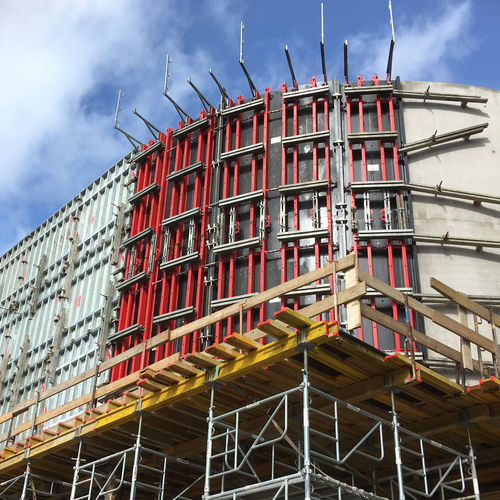

MEVA systems excel through supreme standards of quality, efficiency and practical detailing. The tried-and-tested Radius circular formwork, with its high-grade, elastically deformable steel facing, is no exception. The simple, fast erection, precise stepless adjustment of the curvature and statically reliable steel facing for consistently excellent concrete surfaces speak for themselves. The flexible system for curved walls comprises ready-to-use formwork panels that accommodate radii upwards of 250 cm. Radius sections are connected with push-pull spindles. This integrated spindle system allows continuous on-site adjustment of the panels to the required radius. The location of the spindle system between the stiffening sections minimises the depth of the formwork panels and improves their stackability. As a special service provided on request, MEVA employees will ensure precise ­adjustment of the radii or supply you with factory-built radius templates. ­ Radius is compatible with MEVA’s AluStar, StarTec, Mammut 350 and ­Mammut XT wall formwork systems. A top performer 60 kN/m² fresh concrete load capacity, for tall elements, high pour speeds and large formwork cycles Panel connection with MEVA assembly lock Fast, trouble-free junctions with straight walls Uniform working method, streamlined ­logistics Rapid, labour-saving assembly Intelligent design Millimetre-perfect setting of required radii using integrated spindles Coated steel facing Safe and efficient Integral crane eye bolt Enhanced corrosion resistance, thanks to high-grade powder-coated finish plus additional priming and cavity sealing Straightforward bracing, with standard MEVA components
