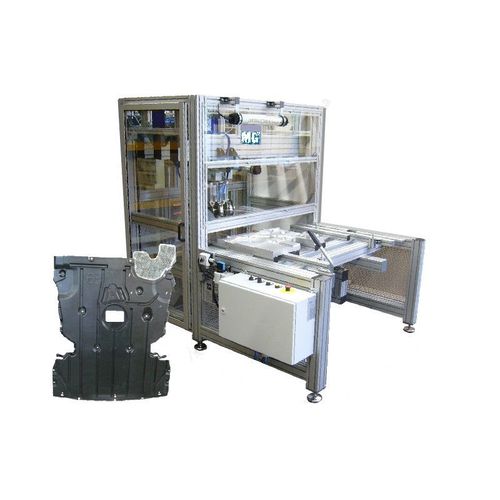

Pneumatic stapling machine D03

for aluminum platesemi-automatic

D03 Stapling Machine SGR 5/A 20-42/RIE3 with 5 Stapling Heads fastening Alu-Sheets onto a Plastic Base Fastening aluminium heat shield sheets onto a plastic covering part used in the automobile industry. Varying aluminium sheets with a plastic base part on top will be put into the empty spaces of an assembling table with handle to be inserted manually. At the touch of a button all parts are being fastened by 5 stapling heads. After pulling out the assembling table the confectioned work-piece can be removed. Output: approx. 10 – 12 sec./ work-piece (without handling). 1.5 parts / min. and 5 staples. • 5 Stapling heads for coiled staples A 20 - 42. • Loading capacity of 1 stapling head: 5000 coiled staples. • Coiled staples M A 42 SS. • Reloading time for 1 coil: less than 1 minute. • Frame with safety doors. • Safety glazing. • Slide-in clinching table to receive work-piece. • Equipped with 20 l pressure tank to compensate pressure oscillations. • Pneumatic maintenance unit.
