Hydraulic bending machine
profilesection3 drive rollers

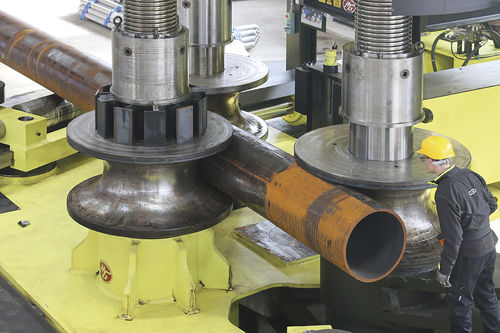

Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers
Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers
Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers - image - 2
Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers - image - 3
Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers - image - 4
Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers - image - 5
Hydraulic bending machine - MG S.R.L. - profile / section / 3 drive rollers - image - 6
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Product handled
profile, section
Number of rollers
3 drive rollers
Control
CNC
Associated function
forming
Roller diameter

Min.: 630 mm
(25 in)

Max.: 980 mm
(39 in)

Weight

Min.: 920 kg
(2,028 lb)

Max.: 13,200 kg
(29,101 lb)

Description

They are more powerful machines, with superior capacities at a competitive price, to roll all types of profiles. Configuration of planetary movement forming rolls to minimize flat parts. The three rolls are driven by three independent hydraulic motors and three planetary gears connected directly to each roll to achieve a higher torque transmission. Special nylon tooling can be installed when aluminum profiles are to be bent, furthermore special three-dimensional lateral hydraulic guides support and accompany the curved profile during processing. These machines can work both vertically and horizontally. CNC automation is possible. This MG bending machine offers the best results for bending special and standard profiles and tubes in mild steel, stainless steel, aluminum, bronze, copper and other steel alloys. MG’s AR section rolls HT version for spiral pipes making has shorter shafts, reinforced motorisation to increase the power in order to obtain smaller diameters, side guides more powerful for better push and pitch control, in addition there is a small calibration roll in order to guarantee the pass precision, a front support with up/down and push/pull movement to give the operator a 360 degree control of the job. The aim of our engineers is to make the most of the machine accessories mechanical and hydraulic the same as if they were an extension of the operators arms but more powerful. In ARL version the bending side rollers move on a rectilinear axis which reduces the space between the rollers themselves. In this way the pinching point of the profile between the lateral and the upper occurs in less space.
