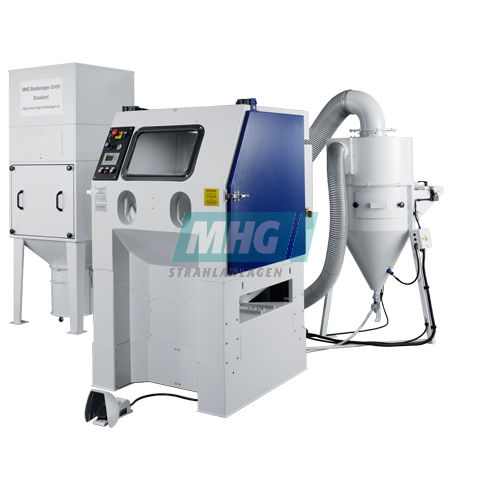

Hand blast cabinet SMG ERGO series

pressure

ADVANTAGES OF THIS BLAST MACHINE Electrically height adjustable range up to 150 mm Optional available with a tumble basket for bulk material SMG 100 also available as a seating system Bright illumination by LED lighting unit is standard WORKING CHAMBER 1000 x 1000 x 1000 mm (W x D x H) BLASTING CHAMBER Dust-tight negative pressure cabinet in sturdy steel sheet construction WORK GLOVES Special wear-resistant rubber, cotton lining, permanently integrated in the cabinet to prevent dust from escaping DOORS Two side doors which closed with dust-tight seal, double-walled, sound-insulating foam, closable, with electrical safety cut-off BLAST MEDIUM RECLAIM Via attuned MHG reclaim system SMG 100 ERGO blast chamber dust density negative pressure cabinet in sturdy steel sheet construction WORK GLOVES Special wear-resistant rubber, cotton lining, permanently integrated in the cabinet to prevent dust from escaping DOORS Two side doors which closed with dust-tight seal, double-walled, sound-insulating foam, closable, with electrical safety cut-off BLAST MEDIUM RECLAIM By means of an attuned MHG reclaim system OPERATION ON/OFF switch for extraction and lighting, pressure regulator, manometer and foot switch VIEWING PANE Safety glass, 500 x 320 mm, can be replaced without special tools BLAST CHAMBER LIGHTING Very bright illumination by LED lighting unit MHG BLASTING GUNS Powerful MHG blasting gun system with optimal efficiency, actuation via foot pedal, available with nozzles in various sizes and materials WORKPIECE BLOW-OFF NOZZLES For the cleaning of the blasted workpieces and the blast chamber
