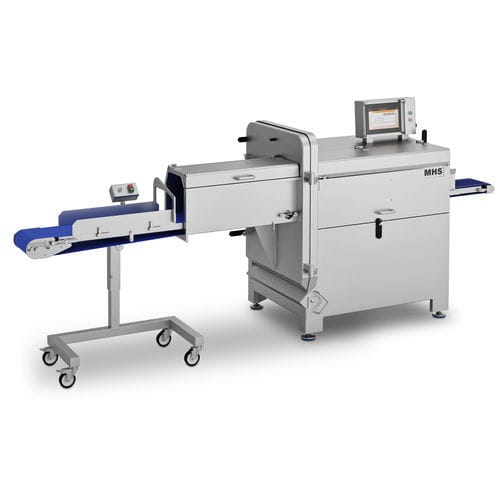

Meat slicing machine ICC series
porkfor fishautomatic

Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic
Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic
Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic - image - 2
Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic - image - 3
Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic - image - 4
Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic - image - 5
Meat slicing machine - ICC series - MHS Schneidetechnik GmbH - pork / for fish / automatic - image - 6
Add to favorites
Compare this product


Characteristics

Food product
meat, pork, for fish
Operating mode
automatic
Electric powered
400V three-phase
Installation
floor-standing
Orientation
horizontal
Other characteristics
continuous, powerful
Throughput

500 p/min, 1,000 p/min

Slice thickness

Min.: 1 mm
(0 in)

Max.: 500 mm
(19.7 in)

Engine power

8.5 kW, 9.4 kW
(11.6 hp, 12.8 hp)

Length

3,600 mm
(142 in)

Width

1,050 mm, 1,230 mm
(41 in, 48 in)

Height

1,650 mm
(65 in)

Weight

720 kg, 900 kg
(1,587 lb, 1,984 lb)

Description

No waiting time thanks to continuous feeding. With the ICC 25/36, we reacted to our customers’ increasing needs. With throughput of up to 4000 kg per hour, you are on the fast lane. But we didn’t compromise on slicing quality. The advantage lies in the continuous production flow, as unlike with traditional machines, there are no waiting times caused by having to retract the gripper or open and close the flap. The ICC 25/36 slices easily bone-in products such as meat, chops, neck or boneless products such as pork belly, roulades, roasts, sausages, cold cuts, cheese and fish. Simple & uncomplicated OPERATION Immediately usable without long training periods for the staff. • Clear touch display • Up to 100 programs can be stored • Highest safety level • Optional step-by-step or continuous feed for uniform slices • Automatic starting device • Software update and data backup via USB stick/SD card Cut your products fast, precise and reliable. • High cutting accuracy of the blade due to MHS micro toothing • Slicing software for portioning • Shorter cycles thanks to automatic return limiter • Linear product feed • Single cut function with higher blade speed increases slice quality on low production rate • Exact feed due to friction-reducing surface • Optimized hold of the product through MHS-toothed feeding belt and the product-adapting hold-down belts • Product recognition enables the division of products into different sections • Residual slice division for slicing the product without residues
