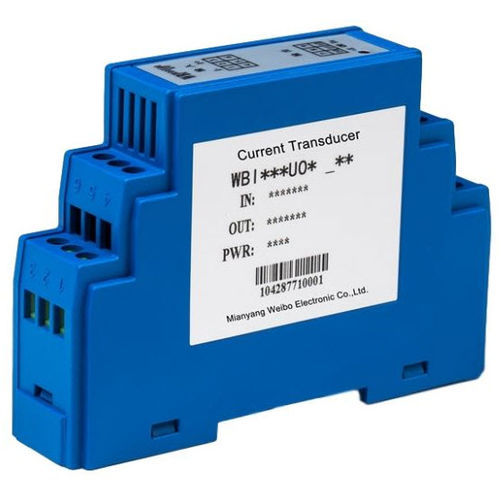

DC current transducer WBI344U01-S

ACmonitoring

WBI344U01-S(DC Current Transducer 4-20mA) converts DC input current into a load independent output signal DC(0)4-20mA. DC Current Transducer 4-20mA has adopted electromagnetic isolation principle for real time measurement of AC current from electric net or electric circuit. Note:The testing must to be done by under the following conditions： Auxiliary power: 24V±5％, ripple≤5mV Ambient temperature: 25℃±5℃ Relative humidity: RH(45～75)％ Accuracy for Signal Power Source instrument: 0.05 Advantages: 27000 square meters non-dust workshop, 30 years’ experience, 6 years' application in high speed railway, ISO, EMC, ETC certificated. Applications: AC power distribution system: such as power distribution cabinet, railway power supply; Signal monitoring: such as AC current monitoring for filament relay, input signal monitoring for motor, etc.
