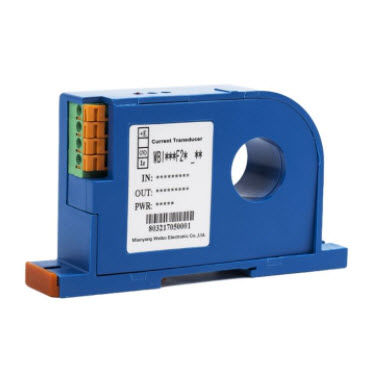

Hall effect current sensor WBI022F21

DCACmonitoring

WBI022F21 (0-5V Out Hall Effect Current Sensor) adopts the principle of electromagnetic induction and Hall effect to measure the AC and DC current of the power grid in real time. Operating instructions 1. Connect the terminals of power source, output respectively and correctly, never make wrong connection for DC current. 2. Temperature of the primary conductor should not exceed 100 °C. 3. In order to achieve the best magnetic coupling, the primary windings have to be wound over the top edge of the device. Applications: Suitable for the current measuring, Automatic monitoring and control, Electrical signal detection and modulation, Data acquisition.
