Voltage battery management system

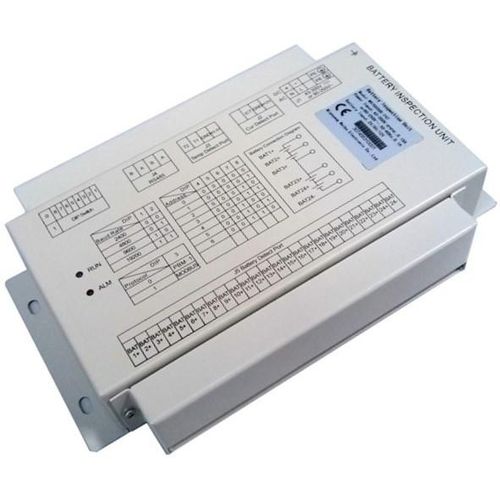

RS485 Battery Management System BMS can measure up to 24 batteries, and the type of single cell is divided into 2V, 6V and 12V. The basic function of the WB7660QB-24Z battery inspector(RS485 Battery Management System BMS) is to detect the single cell voltage of the battery group and the total voltage at both ends of the battery group. It is mainly used to monitor the voltage of the battery group in the DC power supply of the telecommunication machine room and the communication base station. The internal measurement circuit uses high precision A/D to detect the battery voltage in each section. Each measurement port is isolated by the photoelectric isolator and the inner core circuit, and the battery voltage input port is connected with the protective resistance, which ensures the good safety of the battery inspector and the high precision of the measured data. Using RS485 communication interface to output data, RS485 Battery Management System BMS can be directly connected with the monitoring module of the DC screen manufacturer.
