Ultrasonic flowmeter Flowmax 44i
pistonvolumefor liquids

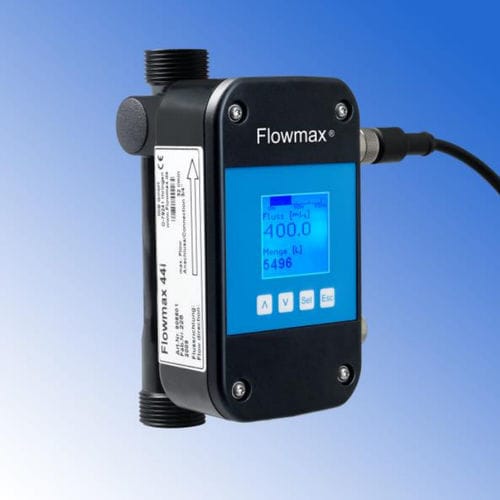

Ultrasonic flowmeter - Flowmax 44i - MIB GmbH Messtechnik & Industrieberatung - piston / volume / for liquids

Ultrasonic flowmeter - Flowmax 44i - MIB GmbH Messtechnik & Industrieberatung - piston / volume / for liquids - image - 2

Add to favorites

Compare this product

Characteristics

Technology

ultrasonic, piston

Type

volume

Fluid

for liquids

Protection level

IP67

Applications

industrial

Other characteristics

digital

Volumetric flow rate

Max.: 240 l/min
(63.4013 us gal/min)

Min.: 0.3 l/min
(0.0793 us gal/min)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -10 °C
(14 °F)

Process pressure

10 bar, 15 bar, 16 bar, 20 bar, 25 bar
(145.04 psi, 217.56 psi, 232.06 psi, 290.08 psi, 362.59 psi)

Precision

0.15 %, 2 %

Repeatibility

0.5 %

Description

Flowmax 44i is a flow meter calculating the volume flow of liquids. MIB GmbH - Ultrasonic Flowmeter Flowmax 44iBased on the ultrasonic technology Flowmax 44i is able to measure conductive and non-conductive liquids contactfree. Flowmax has no moving parts and is absolutely free of wear. The design of the pipe minimizes dead space over the whole geometry. All parts having contact to the medium are PPSU. Thanks to its technical properties Flowmax is able to measure all kinds of liquids like: DI-Water, Body care liquids, Cosmetics, liquid food, and also aggressive and/or toxic acids and alkalis. Flowmax is characterized by its high measurement accuracy and repeatability. Empty pipe detection is integrated. Optionally Flowmax have a PID controller function. The calculated flow is provided with a response rate of a few milliseconds on the outputs. Flowmax has by default a preset quantity counter. The start signal can optionally be fed from the outside. A control signal for activation of the pump or valve control is also standard. Flowmax 44i is suitable for operation with piston diaphragm and peristaltic pumps.
