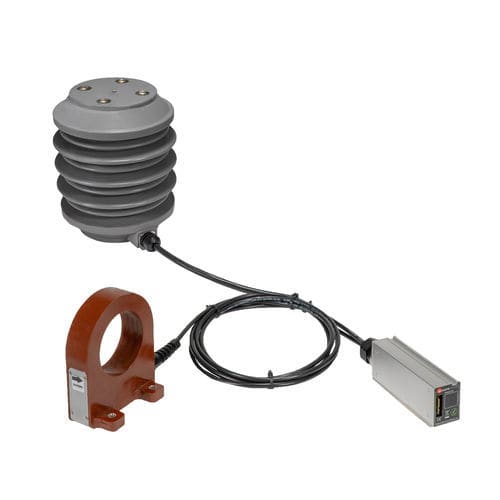

Fiber optic current sensor OSI225medium-voltagevoltageinsulated
Add to favorites
Compare this product
Characteristics
- Technology
- fiber optic
- Electrical characteristics
- medium-voltage
- Other characteristics
- voltage, insulated
- Primary current
Max.: 10,000 A
Min.: 10 A
Description
STANDOFF INSULATING COMBINATION CURRENT AND VOLTAGE SENSOR
OSI225
Voltage: 4kV to 25kV
Amperes: 10A to 1000A
Weight: 5.4 kg (12 lbs)
MICATU OSI225 SENSOR
Insulator body rating 25kV
Optical Cable Length Cartridge to Voltage Insulator 10ft/(3m), Cartridge to Current Ring 10ft (3m)
Accuracy Class: 0.5%
BIL: 125kV Full-Wave Lightning Impulse
Voltage: 4kV to 25kV
Amperes: 10A to 1000A
Transients: 10dB (10x steady state condition) minimum
Harmonics: Measurements to 50th Voltage Harmonic and the 11th Current Harmonic
Weight: 5.4 kg (12 lbs.)
Current Ring: I.D 3.225", 4X 1/2-13 mounting nuts top & bottom
ENVIRONMENTAL
Operational: -22ºF to 185ºF (-30ºC to 85ºC)
Relative Humidity: 5% to 95%
CERTIFICATIONS
Partial Discharge Per IEEE Std.4
