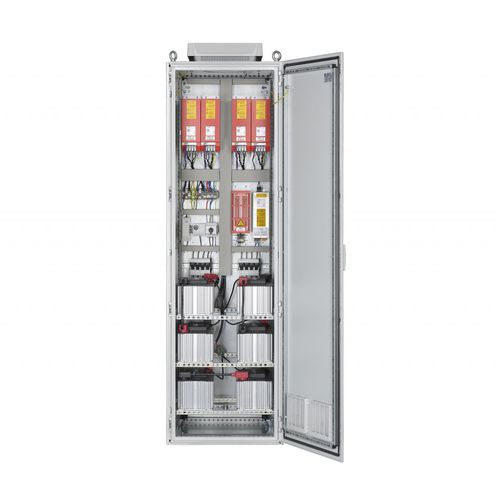

Active energy management unit KTS-U series

Peak power up to approx. 180.000 (KTS-U0800) Peak power up to approx. 40.000 (KTS-U1000) Peak power up to approx. 108.000 (KTS-U2000) Peak power up to approx. 216.000 (KTS-U2000) The KTS is connected directly to the DC link of your drive system and provides energy in the event of an interruption. It can also be used as a cyclic buffer for the brake energy. What if the application requires both features? No problem – the KTS is simply the ideal solution. In addition, all the necessary safety systems are integrated in the system and the delivered system is completely wired and ready for connection. This simplifies your initial operation significantly since, in most cases, all you need to do is just connect the power and communication cables. The modular design of the electronics and storage allows for a fine gradation in relation to the required power and energy quantity. What’s decisive in this case are the application data, which are used as a basis of the initial simulation. The simulation helps determine the necessary components. The sizing tool is available on our website. Protection of electric drives against voltage fluctuations, reduction of peak loads, off-grid use of regen energy: The requirements and framework conditions can hardly be more different. KTS is a very flexible system with solutions for all cases. It consists of a combination of power electronics, super capacitor modules, and other necessary and desired peripherals – all of which are tailored to the specific application scenario.
