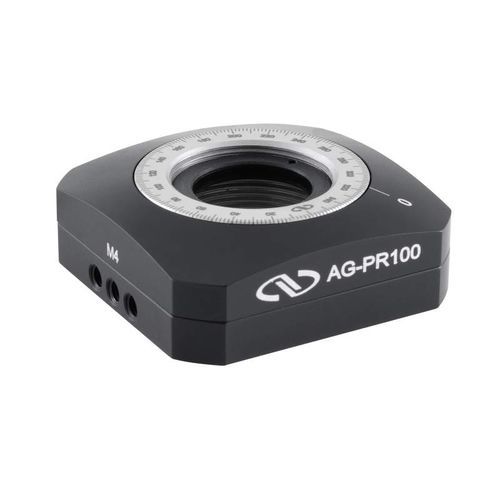

Rotary stage Agilis™

motorizedpiezoelectricprecision

The Agilis™ Series of high precision miniature rotation stages feature Newport’s new, Agilis piezo step direct motor. Agilis stages provides the benefits of ultra-high adjustment sensitivity and convenient remote operation at a price and size comparable to that of a high quality manual stage. •Ultra-high adjustment sensitivity •Ultra-compact for systems integration •Set-and-forget long-term stability •Convenient remote operation •Available with direct read encoder and Conex controller •Vacuum compatible version Lightweight and Compact The AG-PR100 is an ideal, cost-effective solution to making fine rotational adjustments of optical components and small samples. The ultra-compact and light weight AG-PR100 and CONEX-AG-PR100P rotation stages feature 1 inch apertures with retaining rings and are ideal for continuous rotation of waveplates and polarizers. Vacuum Compatible Version We offer a version of the Agilis rotation stage with the stage and cable vacuum compatible to 10-6 hPa. CONEX Controller Version For applications that required a high degree of repeatability and position feedback, the CONEX-AG-PR100P is recommended. The CONEX-AG-PR100P uses an integrated direct encoder and preconfigured closed-loop controller to achieve highly repeatable piezo positioning.
