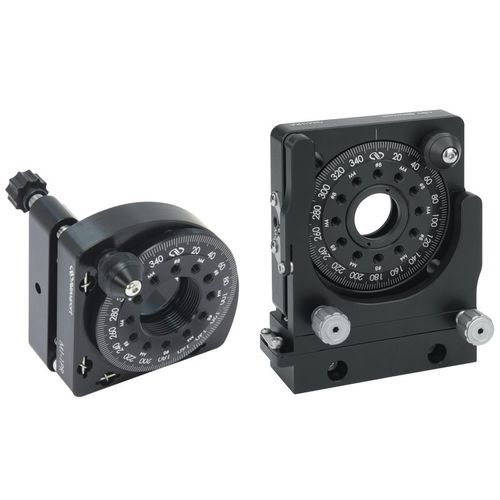

Mounting mirror holder GM-1RA

Tip/Tilt optic rotation mounts provide precise control of polarizers on all three axes of rotation. 1 in. and 0.5 in. wave plates, polarizers, and beamsplitter cubes rotate over 360° smoothly with exacting tip/tilt control while this mount also offers an easier to read rotation scale and independent lock of just the rotation adjustment. •Precision pitch, yaw, and roll positioning for 1 and 0.5 in. polarization optics •Redesigned for easy reading of 360° rotation scale •Hand-turned knobs for finer rotation control •100-TPI adjusters for high precision pitch and yaw adjustment •Independent, non-influencing locks to maintain stable optical alignment Features Gimbaled Tip, Tilt, and Rotation The GM-1RA Gimbal Rotation Mount provides tip/tilt positioning for 1 in. (25.4 mm) wave plates, polarizers, and beamsplitter cubes. This mount is unique due to its gimbaled tip/tilt mechanism which allows angular adjustment of the optic without unwanted translation. The rotation stage can also be removed from the tip/tilt mechanism by removing four screws, allowing the rotation stage to be reversed or used independently. Independent Non-influencing Locks The GM-1RA mount features independent locks for all axes, maintaining stable optical alignment. Engaging or disengaging each lock has negligible influence on the other axes. Removable Slotted Base Plate The GM-1RA mount features a slotted base plate as well as two threaded holes 1/4-20 and M6 at the bottom for maximized flexibility of mounting. The slotted base can be removed in space-limited applications.
