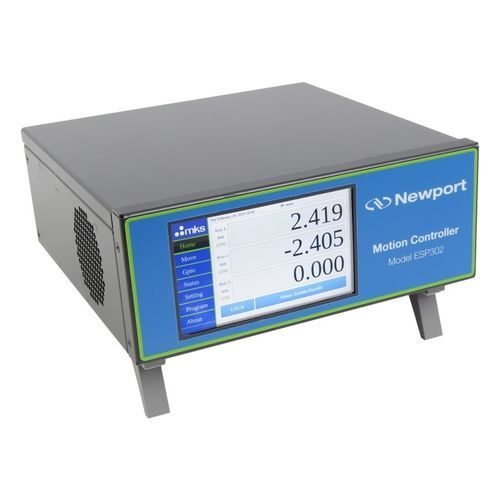

3-axis motion controller ESP302 series

servomotorstepperUSB

The user-friendly, 3 axis ESP301 simplifies motion control with its plug-and-play feature, convenient front panel interface, integrated drivers, and easy-to-use software. Research labs find the ESP301 to be advantageous and convenient; suitable even for light-industrial applications. For stage compatibility see Stage and Actuator Compatibility below. •1 to 3 axes motion controller using universal driver technology •ESP technology, Newport's exclusive plug-and-play compatibility •1000x programmable micro-step resolution for ultra-smooth positioning •USB2.0, RS232 and optional GPIB communications •Ethernet or USB2.0, RS232 and optional GPIB communications Integrated Drivers The ESP301 features up to 3 integrated drivers for various stages. These drivers support 2 or 4-phase stepper or brush DC motors up to 3A, 48V per axis. Built-in drivers make the ESP301 a space saving and cost effective choice. User-Friendly Front Panel ESP302 includes a user-friendly LCD touch-screen front panel interface providing an intuitive menu system from which you can execute motion programs, initiate manual moves, and configure operating parameters. Positions for all axes are displayed on the LCD screen. This allows users to perform nearly all functions without connecting to a computer. Website Interface Through its 10/100/1000 Base-T Ethernet port, the ESP302 offers a website interface for users to control its most common features and functions. This high-speed interface is compatible with Windows 7 and above, is independent from the user's operating system and does not require specific software on the host PC.
