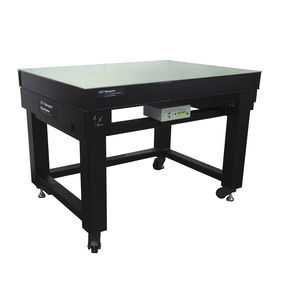

Featuring the material workmanship and quality found in all Newport tables, RPR Series optical table tops meet many general application needs. The RPR offers the same broadband damping, static rigidity, and thermal stability capabilities as the Tuned Damped RS optical table tops but at a more modest price.
•Damped worksurface eliminates skin resonance
•Damped composite edge finish eliminates sidewall resonance
•Constrained layer core damping attenuates broadband vibration
•Honeycomb core for a lighter, stiffer table with better dynamic rigidity
•Mounting holes individually sealed with conical polymeric cup
•Compatible with S-2000A isolators and LabLegs supports
RPR Reliance™ Broadband Damping Performance
RPR Reliance™ broadband damped optical tables represented the state of the art before the advent of tuned damping found in our RS2000 and RS4000 Series optical tables. Indeed, the RPR set the standard that younger companies still imitate. Today they still offer good value for many less stringent applications. The RPR Series tables offer great performance and quality at an affordable price. RPR Reliance™ optical table tops feature a 4.8 mm thick optical table skin, a constrained layer core, damped working surface and composite edge finish to provide broadband damping.
