Crystal resonator CC7A-T1A MEDICAL
ceramic

Crystal resonator - CC7A-T1A MEDICAL	 - Micro Crystal - ceramic
Crystal resonator - CC7A-T1A MEDICAL	 - Micro Crystal - ceramic
Add to favorites
Compare this product


Characteristics

Options
crystal, ceramic
Frequency

Max.: 50 MHz

Min.: 14 MHz

Description

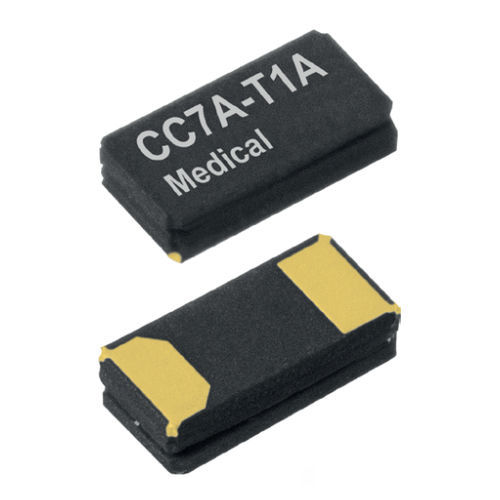

The CC7A-T1A Medical is a high frequency SMT Quartz Crystal Unit built with an AT-Cut Crystal Resonator. Manufactured in accordance with the highest quality production technologies, it operates under vaccum in a Helium impervious full ceramic package. CC7A-T1A Medical is dedicated for specific use in Class III implantable medical devices and benefits from long-term reliability which is of utmost importance and a hallmark of Micro Crystal’s entire medical implantable grade portfolio. Safe for Helium environment: Ceramic lid with gold-tin preform-seal for best long-term hermeticity and aging stability Proprietary manufacturing and testing processes Extended operating temperature range Customer specific testing/screening on request Components and manufacturing traceability records retained Small size, low profile, lightweight Pacemakers Defibrillators Neurostimulators Cardiac Monitoring Devices Implantable Drug Delivery Pumps Infusion Pumps Cochlear Implants Smart Orthopedic Implants

Catalogs

CC7A-T1A
CC7A-T1A
2 Pages
