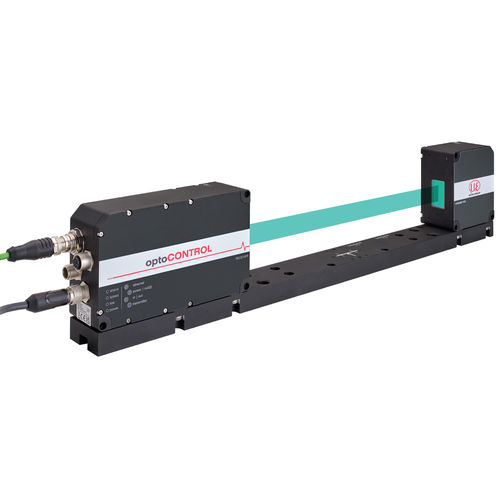

LED micrometer optoCONTROL 2700
professionnalcompacthigh-precision

LED micrometer
LED micrometer
LED micrometer
LED micrometer
LED micrometer
Add to favorites
Compare this product


Characteristics

Type
LED
Applications
professionnal
Other characterisitcs
high-precision, compact
Measuring range

Min.: 0.3 mm
(0.012 in)

Max.: 40 mm
(1.575 in)

Resolution

10 nm

Description

The optoCONTROL 2700 high-performance LED micrometer enables unsurpassed accuracy for demanding measurement tasks. Thickness, gaps, edges and segments can be measured with high precision. Precise measurements of small objects from 0.3 mm can be performed. The LED precision micrometer offers a linearity of ≤ 1 µm and a digital resolution of 10 nm. It is used, for example, in semiconductor production, the automotive industry, aerospace and medical technology. The decisive advantage is the telecentric optics, which significantly optimizes the measurement accuracy. The measuring object is illuminated evenly, and the real-time inclination correction ensures extremely accurate measurement results even when the measuring object is positioned at an angle or tilted. Orthogonal alignment of the measuring object is therefore not necessary. Whether highly reflective objects such as rollers or transparent objects such as glass wafers - these innovative micrometers offer an optimum solution wherever maximum precision and reliability are required. In addition to precise measurements, the integrated contamination detection feature offers a proactive solution for detecting contamination or foreign bodies on the measuring surface. This function helps to avoid measurement errors and to raise the quality of the results to the highest level.Six presets enable quick and easy set-up for the measurement task.
