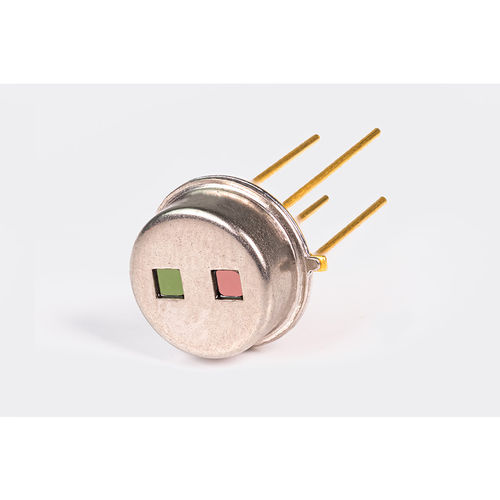

Nitric oxide detector MTS2SENS44

infraredthermalindustrial

The 2 channel IR thermopile MTS2SENS44 nitrogen monoxide precisely measures the concentration of nitrogen monoxide (NO) using an optical narrow band filter with a CWL of 5300 ± 30 nm and a HBW of 200 ± 20 nm. Applications for the dual detector focus on industrial gas measurement of process gases or exhaust gases. The detectivity of up to 1,61*10^8 cm√Hz/W as well as the sensitivity of up to 39 V/W guarantee reliable measurement results. The integrated thermistor for reference temperature determination, a mass absorber as well as an additional reference channel (CWL: 3910 ± 28, HBW: 70 ± 10 nm) add to the features of the dual IR detector. The dual channel thermopile can be operated and stored between -20 and 85 °C. Two chips in the sensor, each with 44 silicon thermopiles, form the core for the MTS2SENS44 nitrogen monoxide. Due to its materials, the thermopile lasts a long time and provides precise measurement data.
