Gas detector 6607.00-1.00

sulfur dioxideNDIRpyro-electric

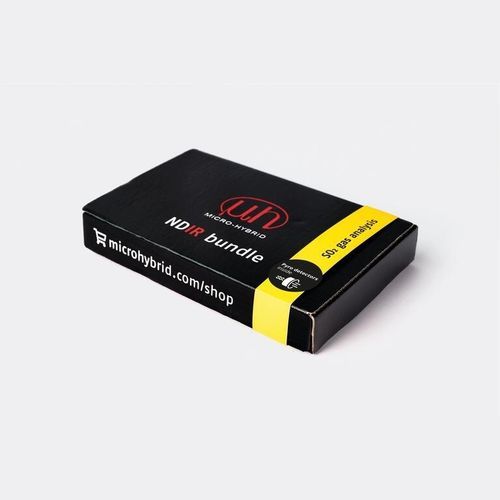

Set of matched emitters and pyrodetectors for the analysis of sulfur dioxide • JSIR350-4-AL-R-D6.0-N2-A4 and PS2x4C2-A-U-S1.5-2-H1-D5 • IR emitter and detector optimally matched to the wavelength range of sulfur dioxide (CWL: 7300 ± 50 nm / HBW: 180 ± 20 nm) • Short delivery times and fast measurement results • Small order quantities ideal for evaluation and development • All components for NDIR gas analysis from one source Description Our NDIR pyro bundle SO2 contains five optimally matched IR emitters and pyro detectors each for the detection of sulfur dioxide. The kit combines the NAC emitter with reflector and BaF2 window belonging to the JSIR 350 series, along with the highly sensitive pyro detector MPS2SENS sulfur dioxide. The optical filter of the dual channel pyroelectric detectors is soecifically tuned to the wavelength range of sulfur dioxide (SO2) (CWL: 7300 ± 50 nm / HBW: 180 ± 20 nm). The NDIR pyro bundle SO2 provides precise measurement data for a wide range of applications. These include exhaust gas analysis for fossil fuel combustion processes in the automotive, railroad and marine sectors as well as in environmental and energy technology, emission monitoring for the use of sulfur dioxide in food technology, brewing or the chemical industry. The advantages at a glance: • Fast delivery from stock: our NDIR pyro bundle SO2 is available immediately - ideal for projects that require short-term evaluation and development. • Fast readings: The compatible emitters and detectors allow easy integration into your application.
