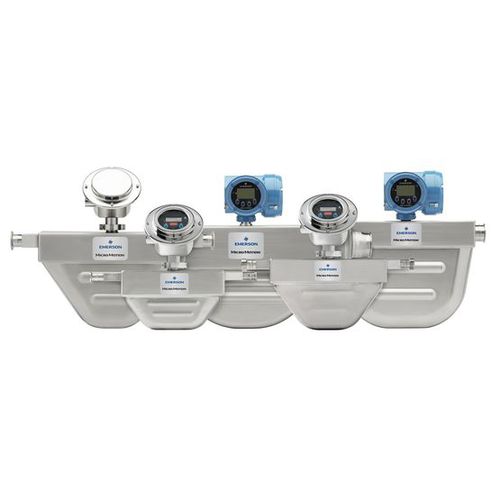

Coriolis flow meter H series

massfor liquidsfor gas

Ideal for hygienic process-control applications, H-Series flow meters are accurate, low frequency, fit-and-forget meters with a compact, drainable, cleanable design. Get reliable performance under extreme process conditions, including entrained gas. Features Minimize variability in process control with superior sensitivity in a compact design Ensure product consistency and quality with superior density measurement Enable fast product change-over with self-draining design and superior temperature stability Choose from options including highly polished 316L stainless steel with a surface finish up to 15 Ra Gain real-time and in-process measurement integrity assurance with Smart Meter Verification Realize superior two-phase flow capabilities for batching, loading and entrained air applications from compact, hygienic SST transmitter housings Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR Use in SIP, CIP and sanitary environments where 3-A and EHEDG compliance is required
