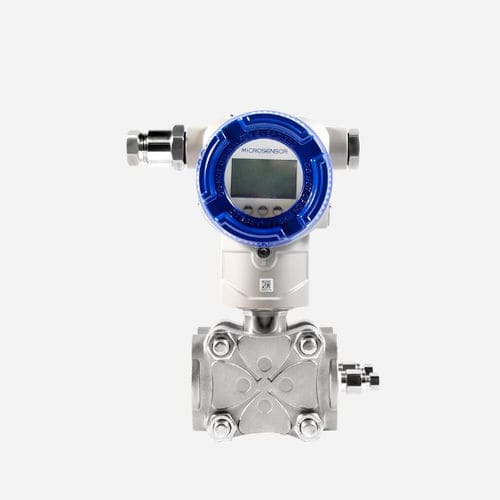

Absolute pressure transmitter MDM7000-D series

differentialsilicondigital

The MDM7000-DGP/DAP Intelligent Differential Pressure Mounted Gauge / Absolute Pressure Transmitter is designed to meet the high demands of the process industry. The monocrystalline silicon piezoresistive technology ensures stable performance with an accuracy of 0.075%FS and a maximum ratio of 100:1, which is ideal for flexible adjustment of the measurement range. The pressure signal can be converted to a 4mA~20mA DC analogue current signal output for remote setup, monitoring and other functions via communication devices, which is essential for measuring the level, density, pressure and flow of liquids, gases or vapours. The MDM7000-DGP/DAP series adopts a high-performance EMC protection circuit module with high anti-interference capability. It also offers excellent long-term stability (±0.2% SPAN/5 years). Its ruggedness and wide range of applications make it applicable for the process industry. Features • Adopts high performance EMC protection circuit module with strong anti-interference ability.
