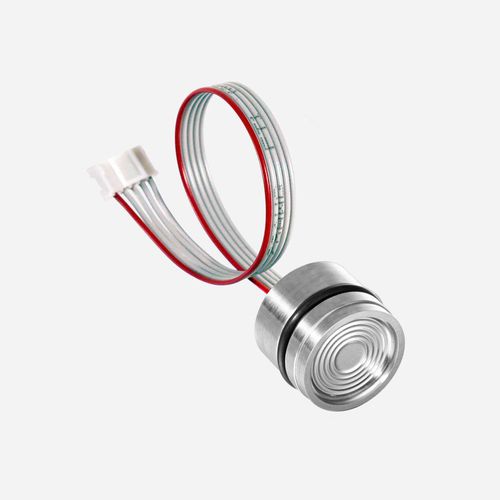

Absolute pressure transmitter MPM3801

piezoresistivesilicondigital

IC pressure sensors are a type of pressure sensor that communicates using the I2C (Inter-Integrated Circuit) protocol. The MPM3801 pressure sensor is digital with IIC and SPI interface protocol. It is designed with small size, oil-filled type which employs silicone oil as a medium for transmitting pressure from the 316L stainless steel diaphragm to the sensing die, and low power consumption. The digital IIC pressure sensor can be widely used for various liquid pressure measurement in industrial process control. The MPM3801 IIC pressure sensor offers application possibilities, including industrial automation, HVAC systems, and environmental monitoring. Feature • IIC digital output • Digital normalized output simplify data processing and interpretation • Isolated oil-filling construction ensures accurate pressure measurements • Compatible with both stainless steel and viton materials Specification • Output Digital Value: 1638 (zero)~14746 (span) • Power Supply: 3.3±0.1V DC(default)；5±0.1V DC Used For Industrial Process Control, Gas & Liquid Pressure Measurement, Cooling Equipment and Air Conditioning System
