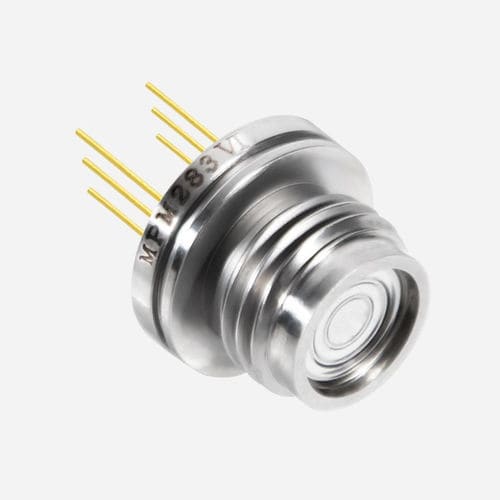

Absolute pressure sensor MPM283VI

siliconthreadedM14 x 1,5

Industrial Process Control, Pressure Measuring Instruments, Refrigeration Equipments and Air Conditioning Systems MPM283VI thread connected pressure sensor uses a high-precision, high-stability sensor chip. The MPM283VI production line adopts advanced automation equipment and automatic testing. The product is compact and easy to connect. The M14x1.5 thread is consistent with the general sensor products and has the characteristics of good interchangeability. The measurement range of MPM283Ⅵ is 0bar~100bar...1000bar, which can be specially used for medium and high pressure measurement. Features • Φ12.6mm compact size OEM pressure sensor • M14×1.5 Thread • Measure various fluid media • Gauge, Absolute and Sealed gauge optional • Stainless steel 316L or Hastelloy C materials Electrical Performance • Output impedance: 3.5kΩ ~ 6kΩ • Response (10% ~ 90%): < 1ms • Overpressure: 2 times FS or 1100bar (min. value is valid) • Housing: Stainless steel 316L • Electrical connection: Kovar or Silicon rubber flexible wires • O-ring: FKM • Net weight: ~8g
