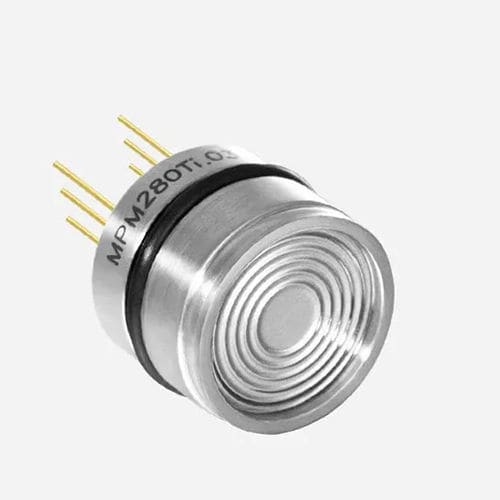

Absolute pressure sensor MPM280TI

siliconvoltage outputfor gas

Seawater or Corrosive Media Measurement, Liquid Pressure System and Switch MPM280Ti Anti-corrosive Pressure Sensor is unique for strongly corrosive media or seawater measurement. Its anti-corrosive performance is far better than stainless steel. The corrosive media being measured encompass a range of corrosive factors, such as pitting, acid erosion, stress corrosion, alkaline substances, chlorides, chlorine compounds, nitric acid, and various other corrosive substances. It uses all titanium material in construction, TC4 housing material and TA1 diaphragm. Features • Gauge, Absolute and Sealed gauge • Constant current or Constant voltage power supply for option • Isolated construction to measure various fluid media • Φ19mm OEM pressure element • Different metals with excellent corrosion resistance for option • Tnegtive pressure measurement is available, the lowest to around -1bar Electrical Performance • Power supply: ≤2.0mA DC • Electrical connection: φ0.5mm Kovar pin or 100mm silicon rubber flexible wires • Common mode voltage output: 50% of input (typ.) • Input impedance: 3kΩ~8kΩ
