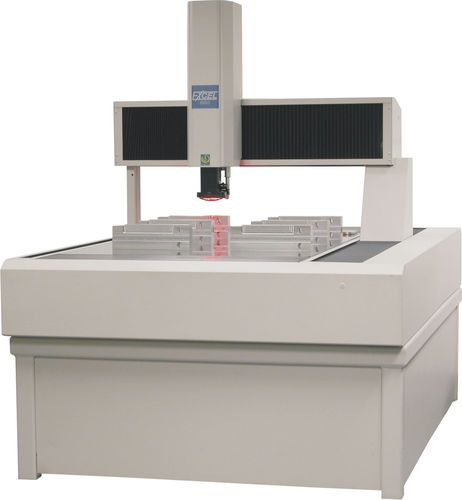

Bridge coordinate measuring machine Excel series gantryfor large partsmulti-sensor
Add to favorites
Compare this product
Characteristics
- Structure
- bridge, gantry
- Applications
- for large parts
- Probe type
- multi-sensor
- Other characteristics
- high-precision
- X travel
Min.: 400 mm
(15.75 in)Max.: 1,600 mm
(62.99 in)- Y travel
Min.: 500 mm
(19.69 in)Max.: 2,500 mm
(98.43 in)- Z travel
400 mm
(15.75 in)Min.: 160 mm
(6.3 in)Max.: 400 mm
(15.75 in)
Description
The Excel Multisensor Measuring Centers employ new technologies to provide high speed and accuracy on reliable and affordable measurement systems.
In addition to Vision capabilities, an Excel offers Touch Probe and Laser measurement capabilities. Touch Probe capabilities improve 3D measurement capabilities. Laser capabilities improve speed for scanning and Z height measurements.
With the multisensor capabilities, advanced digital and optic zoom, proprietary edge detection, and InSpec Metrology Software, the Excel Measuring Centers can handle demanding measurement applications.
The gantry style system accommodates large parts and fixtures of multiple parts while maintaining a relatively small footprint. The Excel series of machines measures parts up to 2.5 meters long and up to 100 kg in weight.
