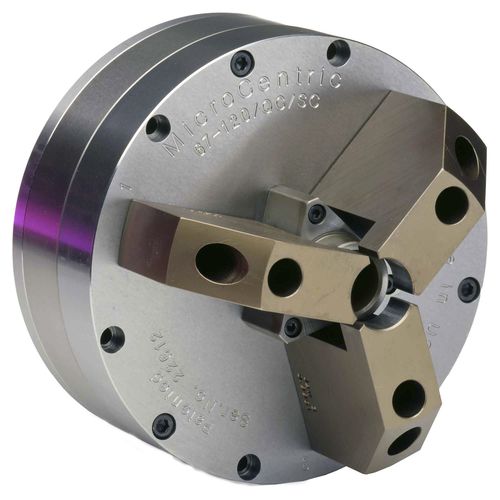

Power chuck SC/QC series3-jawlathemachining
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Number of jaws
- 3-jaw
- Other characteristics
- lathe, machining, gripper, precision, pneumatic, stationary
- Rotational speed
Min.: 4,000 rpm
(25,132.74 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)- Gripping force
Min.: 1,745.58 N
Max.: 4,746.42 N
- Outer diameter
80 mm, 100 mm, 150 mm
(3 in, 4 in, 6 in)
Description
Sealed air chucks feature a stainless steel cover that seals the jaw slides. This design prevents contamination from grit and swarf and minimizes chuck maintenance for high volume production operations. Sealed air chucks are available in rotating and stationary configurations and are ideal for cylindrical grinding operations as well as machining abrasive materials such as powdered metal, ceramic, or carbide.
QC precision located top jaw system is standard on sealed air chucks.
Chuck Accuracy
.00005" (0.0012mm) TIR is standard
.00002" (0.0005mm) TIR is available
