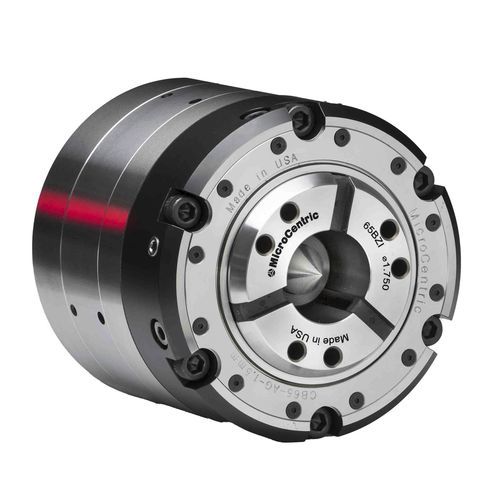

Machining collet chuck CB-AG

radialprecision3-jaw

The CB-AG series collet chuck is a pull back design with a floating collet seat for machining shafts between centers. Centers or other part locators are mounted in the ID of the chuck. The floating collet seat can also be locked out to clamp parts on-center. Compact OD and short length compared to other compensating chuck designs provides greater rigidity. • 1.5mm (.060”) total compensation • Mounting in ID of chuck body for mounting locating center • Radial adjusting screws to true-up locating center within .0002” (0.005mm) • Lubricated-for-life design requires minimal maintenance • Compact design for greater rigidity • Collet seat can be locked out for clamping parts on-center • All components hardened and precision ground for highest accuracy and long life
