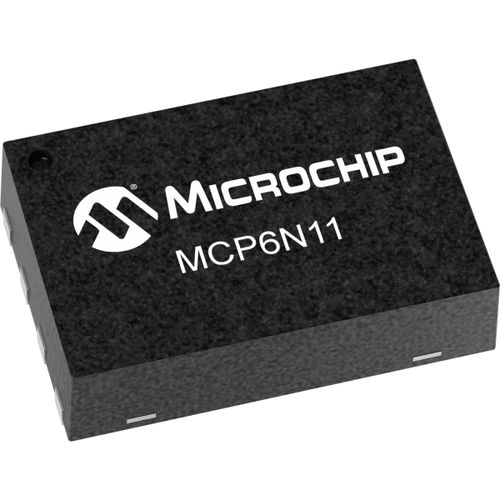

Signal amplifying integrated circuit MCP6N11instrumentationprecisionDC
Add to favorites
Compare this product
Characteristics
- Type
- signal
- Secondary function
- instrumentation
- Other characteristics
- DC, precision, common mode, low-noise
- Voltage
Max.: 5.5 V
Min.: 1.8 V
- Current
0.8 mA
- Frequency
500 kHz
Description
The MCP6N11 single instrumentation amplifier is optimized for single-supply operation with rail-to-rail input and output performance. Two external resistors set the gain, minimizing gain error and drift over temperature. The supply voltage range of 1.8V to 5.5V is low enough to support many portable applications. All devices are fully specified from -40 to +125C.
Product Features
Rail-to-rail Input and Output
Gain Set by 2 External Resistors
Enable/Vos Calibration Pin
No Common Mode Crossover Distortion
Extended Temperature Range: -40 to +125C
Parametrics
Channels - 1
CMRR (dB) Min at DC - 70
CMRR (dB) Typ at 60Hz - 94
Enhanced EMI Protection - No
Gain Max (V/V) - 10000
Noise Density @ 1kHz (nV/rtHz) - 60
Vos Max µV (microvolt) - 350
