High-speed circuit breaker IR6000F ANSI series

for railway applicationsfor DC applicationsfixed

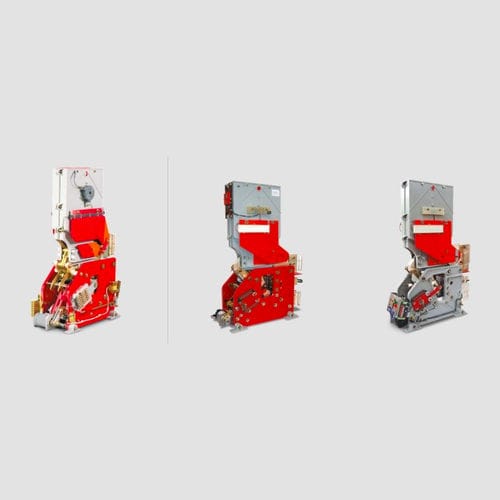

The IR6000F Line is the right choice where a very powerful solution is required on Fixed Application, for both railway and industry solution according to ANSI C37.14 and ANSI C37.16 standard. Feeder and Rectifier functions for Light Duty or Heavy Duty systems. The IR6000F represents the most experienced extra heavy duty line. To be considered for applications requiring high thermal current and high breaking current for systems up to 1,2 kV. The IR6000F Line is a range of single pole, air, high speed circuit breakers for DC applications with air breaking, available in three voltage ratings of 800, 1000 and 1200 Vdc and several thermal currents: 3150 A - 4000 A - 5000 A - 6000 A - 8000 A IR6000F Series includes: IR6000FC, Vertical mounting, Holding Coil version. Sometimes used as Feeder function IR6000FP, Vertical mounting, Permanent Magnet version. Normally used as Feeder and Rectifier function IR6000ML, Vertical mounting, Mechanical Latch version. Normally used as Rectifier function
