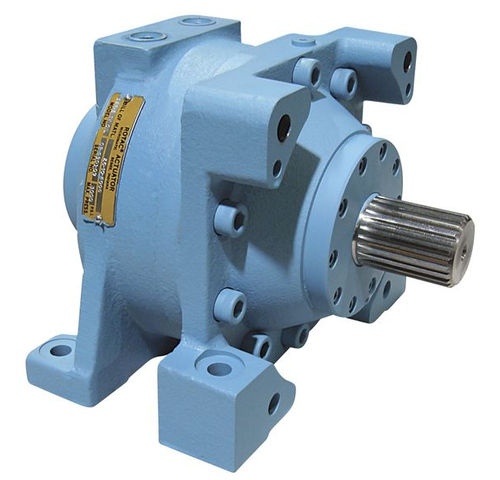

Rotary actuator 26R series
hydraulicdouble-acting

rotary actuator
rotary actuator
Add to favorites
Compare this product


Characteristics

Movement
rotary
Type
hydraulic
Configuration
double-acting

Description

26R rotary actuators provide the "Muscle" for your lifting, turning, indexing, opening, closing, clamping, mixing, bending, testing, steering...applictions. NOTE: Connection of drains will add significant life to shaft seals. Their use is highly recommended. NOTE: FOR FLANGE MTD. UNITS THESE HOLES SHOULD BE TRANSFER DRILLED AND REAMED AT INSTALLATION FOR INSERTION OF DOWEL PINS. (THIS WILL AID IN PREVENTING ??RACKING? OF ACTUATOR ON MOUNTING BOLTS DUE TO TORSIONAL FORCES) 2000 PSI maximum is recommended for severe duty applications, such as operating at maximum torque at high cycle rates for extended periods. Please consult factory for applications beyond 2000 PSI. 3000 PSI can be used on intermittent shockless actuations.
