MEMS vibration sensor Recovib Feel 2/6G

magneticelectronicmicromechanical accelerometer

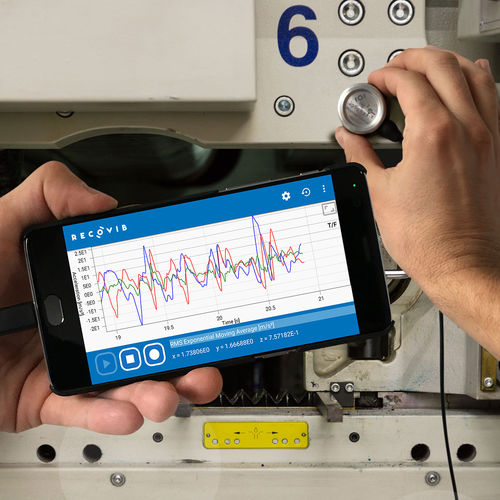

3-AXIS SHOCK & VIBRATION SMART PROBE Recovib Feel 2/6G PROPERTIES 3 axis accelerometer DC to 250 Hz useful bandwidth Low noise Compact and rugged design Protection grade IP67 POSSIBLE USE “Quick & dirty” vibration monitoring Real-time vibration analysis Real-time frequency and time analysis Vibration diagnosis Vibration modal analysis Machine tools - Automotive - Aviation Structural analysis and Health Monitoring BENEFITS RECOVIB Feel has been designed for performing an immediate vibratory analysis. It is connected to an Android device or tablet PC via a USB connection. The supplied application enables the streaming of real-time vibration data on a chart in the time domain and in the frequency domain. While streaming, it is possible to record vibration data in order to replay it in a data viewer, on your smartphone or your PC. The viewer allows for a detailed analysis of the vibrations recorded in the time domain and in the frequency domain. Various signal processing options are available: high-pass, low-pass and band-pass filters, integrator filters (velocity mode) and dual-integrator filters (displacement mode). In the frequency domain, several FFT-based computations are offered : Amplitude Spectrum Peak and RMS, Power Spectrum, Power Spectral Density and Amplitude Spectral Density.
