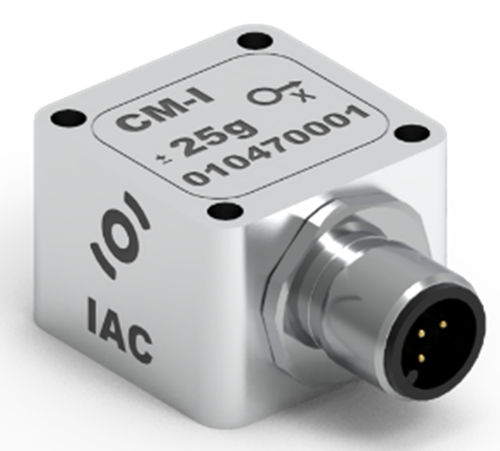

Single-axis accelerometer IAC-I-CM-01

MEMScapacitiveEMI

Industrial Accelerometer (4-20 mA) The RECOVIB® industrial accelerometers bridge the gap between the performance of laboratory accelerometers (which are often expensive, fragile and offer low protection) and the robustness of industrial accelerometers (which are sometimes cheaper but often noisy and inaccurate). Our accelerometers can be deployed in industrial environments for monitoring machinery or structures. The RECOVIB® accelerometers are of proven design and the majority of the models available are widely used in a variety of fields, such as the machine tools, precision machining and on-shore and off-shore wind energy sectors in monitoring or active vibration control applications. PROPERTIES Wide bandwidth (DC - 10kHz) Very low noise on entire bandwidth Suited for direct connection to standard control and measurement equipment, e.g. PLCs or panel meters Embedded 4..20mA signal conditioning Self-powered Current Loop Galvanically Isolated Protected against false polarization Compact and rugged design Protection grade IP67 APPLICATIONS Evaluation of machine vibration (eg according to ISO10816)
