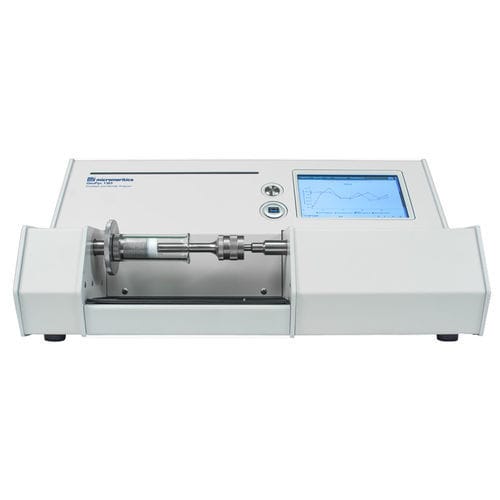

Mercury analyzer GeoPyc 1365

monitoringpressureflow

Measures the envelope volume and density of formed pieces without use of hazardous materials Highly accurate and reproducible results. Fast operation in a small bench-top instrument. Fully automated data acquisition and reporting. Non-destructive analysis maintains sample integrity. Intelligent touch panel for ease of operation and reporting. Available Trans-Axial Pressure (T.A.P.) analysis option to determine compressed bulk density of powders, complying with ASTM Test Method D8097. When combined with skeletal density, provides pore volume and porosity of formed pieces, such as roller compactor ribbons and sintered solids The GeoPyc automatically determines the volume and density of a solid object by displacement of DryFlo, a solid medium. The medium consist of a narrow distribution of small, rigid spheres that have a high degree of flow ability and achieve close packing around the object under investigation. The particles are sufficiently small that during consolidation they conform closely to the surface of the object, yet do not invade pore space. Features and Benefits Provides rapid, controlled-compression analysis with results in as little as 15 minutes. Can be used with formed pieces to provide envelope density, as well as with powders to provide compress bulk density. Easy cleaning and disposal of analyzed materials since they is free of hazardous materials and waste. Simplified operation through fully automated instrument control. Can be used stand-alone, or can provide results via email or through a web browser. Ability to program, store, and reuse large number of analysis method files.
