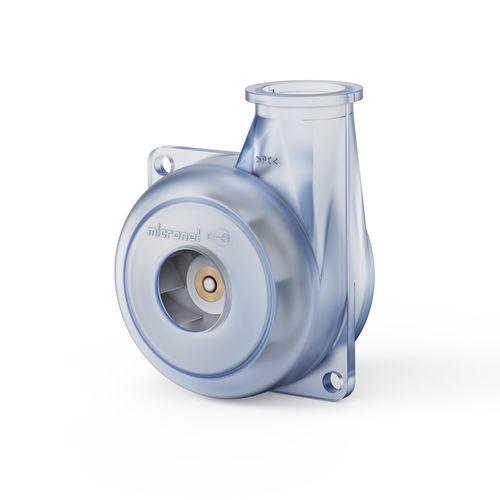

Small blower U51DX-012KK-5airradialsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- radial
- Number of stages
- single-stage
- Voltage / frequency
- 12 Vdc
- Other characteristics
- small, three-phase, brushless
- Flow
440 l/min
(116.236 us gal/min)- Operating pressure
5,000 Pa
(0.725 psi)- Nominal power
41 W
(0.056 hp)- Sound level
62 dB
- Weight
90 g
(3.17 oz)
Description
The Radial Blower of the U51DX Series is specifically designed with a brushless three-phase motor with hall sensors. It is built without an integrated motor controller and requires an external driver. In addition, this blower has a standard air density of approximately 1.2 kg/m³. The air flow rate of this radial blower ranges from 439 to 472 L/min.
Catalogs
U51DX-012KK-5
5 Pages
