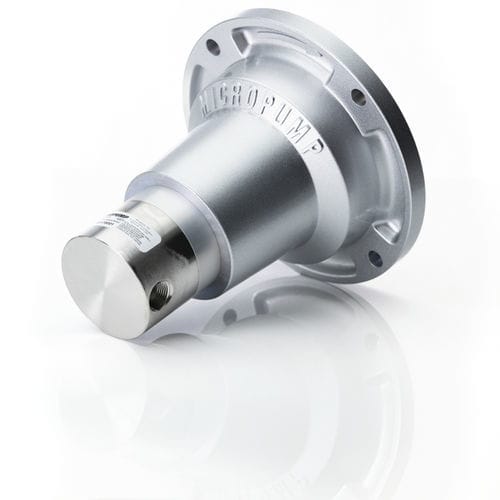

Gear pump GD waterelectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- water
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- steel, steel
- Other characteristics
- small, OEM, flow
- Flow
Max.: 13.9 l/min
(3.67199 us gal/min)Min.: 1.7 l/min
(0.44909 us gal/min)- Pressure
Max.: 103 bar
(1,493.889 psi)Min.: 6.9 bar
(100.076 psi)- Fluid temperature
Max.: 204 °C
(399.2 °F)Min.: -46 °C
(-50.8 °F)- Weight
2.7 kg
(5.95 lb)
Description
The GD Series cavity style, magnetic drive gear pumps provide precise, pulseless flow for applications.
GD Series can be optimized for extended life in aggressive environments with the selection of an abrasion resistant cavity style pump chamber and hardened steel gears. The GD Series can also offer an optional high-powered, high system pressure version for pressures up to 103 bar (1500 psi).
Product Features
Small Size
Smooth, Pulseless Delivery
Chemically Resistant
Easy to Service
Proven Reliability
Advanced Pump Technology
Wide Range of Options
OEM Configurations
High-System Pressure Capability
Enhanced Efficiency
Displacement Range
Gear Set M35: 3.48 ml/rev (0.92 US gal/1000 rev)
Construction
Magnetic Drive Gear Pump
Cavity Style
Three Helical Gears
Stationary Shafts
O-ring Seal
Wetted Materials
Base Materials
316 Stainless Steel
Gears
PPS
PEEK
Hardened Steel (A10)
Static Seals
FKM
EP
TEV
FFKM
Magnets
Driven & Driving
Ferrite
Rare Earth
