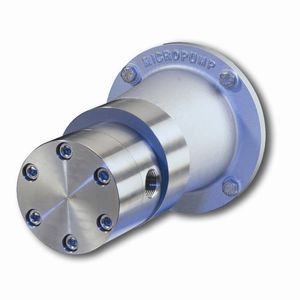

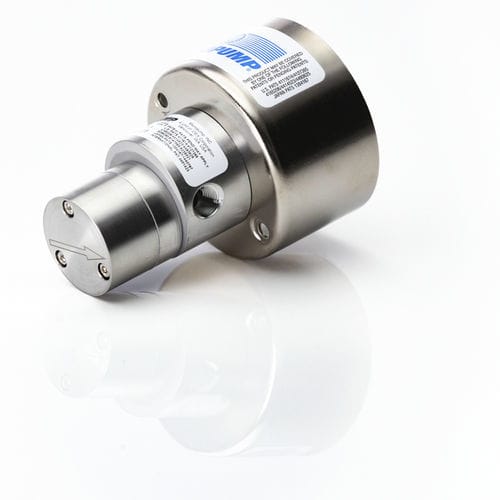

Gear pump GJ series

waterelectricself-priming

The GJ Series delivers exceptional pumping performance for any high-precision application. These compact, magnetically driven gear pumps feature a cavity style design with no dynamic seals for applications that cannot tolerate leaks. With benefits like chemical resistance, abrasive fluids pumping, smooth, pulseless delivery, and reverse pumping - GJ Series pumps are available with a wide range of options, as well as in standard and OEM configurations. Product Features Small Size Smooth, Pulseless Delivery Chemically Resistant Easy to Service Proven Reliability Advanced Pump Technology Wide Range of Options OEM Configurations High-System Pressure Capability Enhanced Efficiency Displacement Range Gear Set N21: 0.316 ml/rev (0.08 US gal/1000 rev) Gear Set N23: 0.64 ml/rev (0.17 US gal/1000 rev) Gear Set N25: 0.91 ml/rev (0.24 US gal/1000 rev) Gear Set N27: 1.23 ml/rev (0.32 US gal/1000 rev) Construction Magnetic Drive Gear Pump Cavity Style Two Helical, Shafted Gears Sleeve Bushings PTFE Gaskets and Seals Wetted Materials Base Materials 316 Stainless Steel Alloy 20 Titanium Alloy 276 Gears PPS PEEK PTFE Static Seals PTFE FKM Magnets Driven & Driving Ferrite Rare Earth Electromagnetic Product Enhancements Internal Bypass Deck Ports
