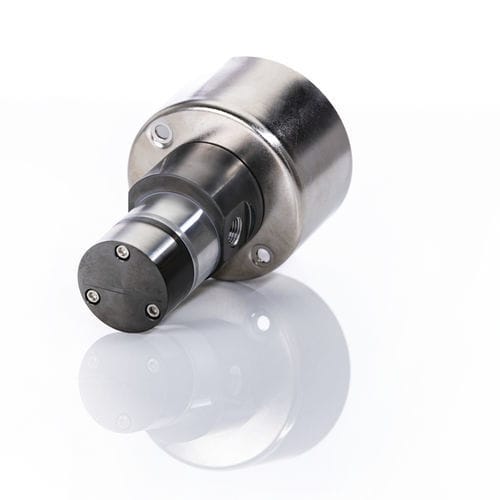

Gear pump GJR for chemicalselectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Fluid
- for chemicals
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, chemical
- Material
- metal, nickel
- Other characteristics
- standard, small, OEM
- Flow
Max.: 53.4 us gal/h
(3.36902 l/h)Min.: 2.5 us gal/h
(9.46353 l/h)- Pressure
Max.: 21 bar
(304.579 psi)Min.: 5.5 bar
(79.771 psi)- Fluid temperature
Max.: 132 °C
(269.6 °F)Min.: -46 °C
(-50.8 °F)- Weight
Max.: 0.45 kg
(0.99 lb)Min.: 0.34 kg
(0.75 lb)
Description
The newly improved GJR Series is your severe duty solution. From inception, the GJR has set the standard.
Abrasive fluids, such as pigmented paints and inks or metal loaded fluids, often cause significant pump wear, impacting pumping functionality and dramatically
shortening pump life.
Micropump’s GJR Series pumps use leading materials and design processes to deliver exceptional pump performance and reliability in challenging fluid applications.
Product Features
Chemical and Abrasion Resistant
Small Size
Smooth, Pulseless Delivery
Easy to Service
Proven Reliability
Advanced Pump Technology
High-System Pressure Capability
Enhanced Efficiency
OEM Configurations
Displacement Range
Gear Set N21: 0.316 ml/rev (0.08 US gal/1000 rev)
Gear Set N23: 0.64 ml/rev (0.17 US gal/1000 rev)
NEW Gear Set N27: 1.23 ml/rev (0.32 US gal/1000 rev)
Construction
Magnetic Drive Gear Pump
Cavity Style
Solid Nickel Carbide Spur Gears
Side Port
