Water pump GLH series
electricself-priminggear

water pump
water pump
water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Priming
self-priming
Technology
gear
Mobility
stationary
Domain
industrial
Applications
handling, high-precision
Other characteristics
small, OEM, rugged
Flow

Min.: 0.61 us gal/min
(2.3091 l/min)

Max.: 7 us gal/min
(26.49788 l/min)

Pressure

Min.: 8.6 bar
(124.732 psi)

Max.: 103 bar
(1,493.889 psi)

Fluid temperature

Min.: -46 °C
(-50.8 °F)

Max.: 121 °C
(249.8 °F)

Weight

3.9 kg
(8.6 lb)

Description

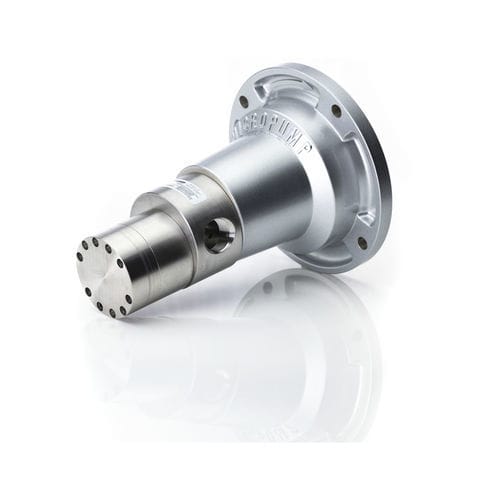

The GLH Series pumps can handle tough fluid handling needs without taking up too much space. This cavity style gear pump provides smooth, pulseless delivery and can withstand system pressures to 103 Bar (1500 psi). GLH Series pumps deliver rugged, reliable performance for any high-precision pumping need. Product Features Small Size Smooth, Pulseless Delivery Chemically Resistant Easy to Service Proven Reliability Advanced Pump Technology Wide Range of Options OEM Configurations High-System Pressure Capability Enhanced Efficiency Displacement Range Gear Set H21: 4.6 ml/rev Gear Set H23: 6.2 ml/rev Gear Set H25: 7.7 ml/rev Construction Magnetic Drive Gear Pump Cavity Style Helical, Shafted Gears Sleeve Bushings O-ring Seals Wetted Materials Base Materials 316 Stainless Steel Gears PTFE PEEK Static Seals Viton® PTFE Magnets Driven & Driving Ferrite Rare Earth

Catalogs

GLH SERIES
GLH SERIES
2 Pages
