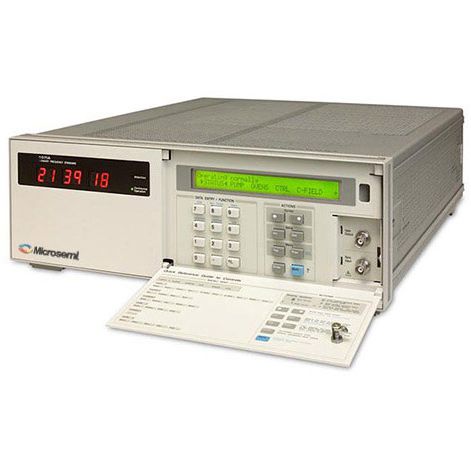

Frequency standard 5071A

Accurate, stable, and capable of delivering extremely predictable time and phase for long periods, the 5071A meets the needs of leading-edge metrology and calibration labs. Used with GPS systems, the 5071A provides master clock integration for telecommunication, satellite communication, and navigation systems. Microsemi's 5071A primary frequency standard delivers exceptional frequency stability. Thanks to a stability specification for 30-day averaging time, the 5071A can keep extremely predictable time and phase for long periods. Combined with a GPS timing receiver the 5071A primary frequency standard can produce a highly robust, inexpensive, and redundant frequency and time system. Key Features Frequency accuracy to 5 x 10-13 The intrinsic accuracy of the cesium beam tube assures that any 5071A Option 001 will power up to within 5 x 10-13 of the accepted standard for frequency. This is achieved under full environmental conditions in 30 minutes or less- and without the need for any adjustments or alignments. Long-term stability better than 1 x 10-14 The 5071A Option 001 high-performance cesium beam tube guarantees stability to be better than 1 part in 10-14 for averaging times of five days or greater. The 5071A is the first cesium standard to specify stability for averaging times longer than 100,000 seconds (approximately one day).
