OCXO oscillator GPS-1000

electromechanicalsurface-mountlow phase noise

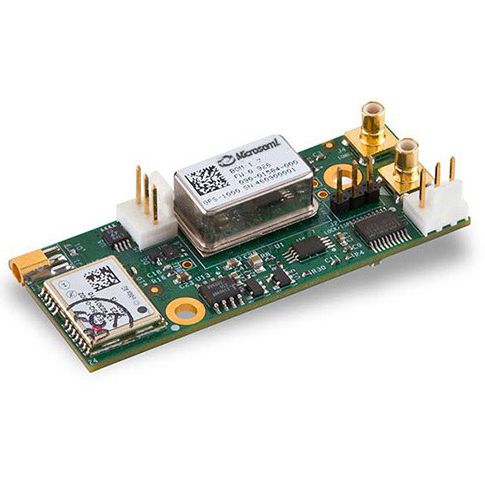

The GPS-1000 is a 10 MHz OCXO-based GPSDO with a small footprint and a host of firmware enhancements that make it ideal for avionics applications. The Microsemi ® GPS-1000 is a 10 MHz OCXO-based GPS Disciplined Oscillator (GPSDO), covering an operating temperature range of 0 °C to +60 °C. The unit features a high-performance GPS receiver that can track up to 50 GPS signals, down to levels as low as -160 dBm. The receiver is compatible with GPS, WAAS, EGNOS, and MSAS signals, and is Galileo-ready. Key Features High-performance GPS Receiver Small footprint and low profile: only 1.0 inch x 2.5 inch x 0.5 inch Fast warm-up Low phase noise 1 PPS output accuracy of ±50 ns to UTC RMS (1-sigma), GPS-locked
