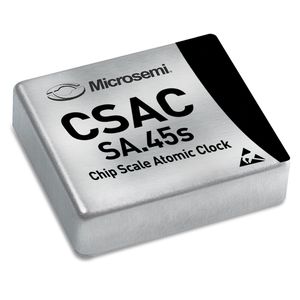

Clock generator LN-CSAC

Pairing the lowest power atomic clock (CSAC) with the spectral purity of an OCXO has enabled an exceptionally stable oscillator. The Microsemi LN-CSAC acts as a frequency and timing subsystem, while requiring limited size, weight, and power. It accepts a 1PPS input that may be used to synchronize the unit's 1PPS output to an external reference clock within ±100 ns accuracy or discipline its phase and frequency to within 1 ns and 1.0 × 10–12, respectively. < 295mW power consumption < 46cm3 volume < 4 minutes time to lock < 3x10-11 @1s Short Term Stability (Allan Deviation) < 9x10-10 /mo Aging Rate (Typical) -10oC to +70oC Operating Temperature 10MHz, 1PPS outputs 1PPS input for synchronization RS-232 interface for monitoring and control Phase Noise—sine wave ≤–85 dBc/Hz at 1 Hz ≤–120 dBc/Hz at 10 Hz ≤–140 dBc/Hz at 100 Hz ≤–145 dBc/Hz at 1 kHz ≤–150 dBc/Hz at 10 kHz ≤–155 dBc/Hz at ≥100 kHz LN-CSAC Developer's Kit (990-00565-000) HW platform to evaluate LN-CSAC On board socket for LN-CSAC HW included to allow mounting of evaluation board Wall socket power supply RS-232 cable to connect PC to evaluation board
