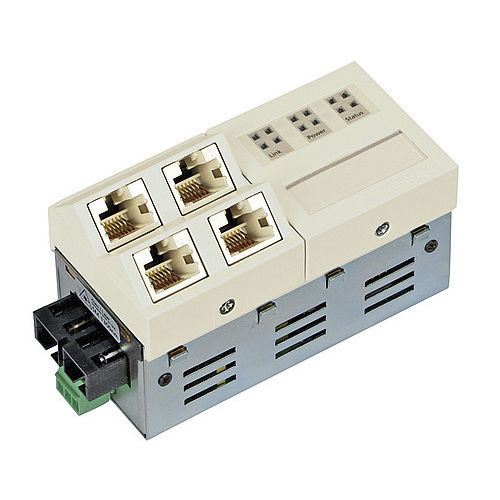

Managed switch MS440200PM-48

6 portsfiber opticsgigabit

Gigabit Ethernet Micro Switch 6 Port PoE RJ-45 downlink-port for hidden connection of Ethernet devices (10/100/1000T) Power-over-Ethernet at all five RJ-45 connectors Comfortable administration (Web-, Telnet-, SNMP-interface and NMP-Software) High security through VLANs, 802.1x, SSH, accounting etc. Fast, tool-free mounting by snap-in installation Optional SFP-uplink with dual speed 100/1000 Mbps The 6 port GBE Micro Switch constitutes an extension of the Gigabit Ethernet Micro Switch. In addition to the 1000Base-X fiber optic uplink, for linking to the central distributor, this switch has an additional RJ-45 downlink 10/100/1000Base-T. This additional connection is positioned at the rear of the switch and is also covered after the installation. This additional connection can, amongst other things, be used for cascading other Micro Switches in order to obtain additional connection capacities. The interconnection of two switches via the TP port offers to increase the reliability of the network. If one fiber connection is interrupted the neighbouring switch handles the data traffic via RSTP. All five RJ-45 ports (4 user ports and 1 downlink) support the complete Powerover- Ethernet functionality according the IEEE Std. 802.3af. Intelligent power management monitors the active current consumption of connected end equipment. The switches are powered by an external 48 V DC power supply.
