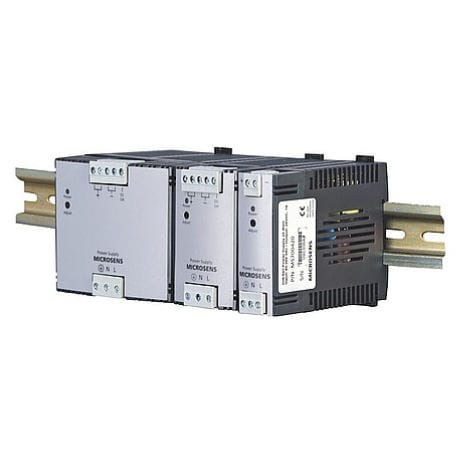

AC/DC power supply MS700420adjustableswitchingDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- adjustable
- Technology
- switching
- Mounting
- DIN rail
- Features
- compact
- Protection class
- IP20
- Input voltage
Max.: 264 V
Min.: 85 V
- Output voltage
24 V
Max.: 28 V
Min.: 24 V
- Current
0.2 A
- Power
24 W
Description
Industrial Power Supplies (24 VDC)
extreme compact chassis, IP20
high efficiency
integrated over voltage protection
snap-on mounting on 35 mm hat-rails
parallel operation of up to 5 power supplies
For the particular critical industrial use in rough environments MICROSENS has developed a special compact power supply. Beside standardized features this device offers additional optimizations for the use in switching cabinets.
The design of the chassis increases the surface und leads together with the high efficiency to optimum heat dissipation.The product range for the industrial segment includes, beside the described power supply, media converter for Ethernet (10Base-FL/10Base-T), Fast Ethernet (100Base-FX/100Base-TX) and converter for serial interfaces (RS-232, RS-422, RS-485).
Furthermore there are Fast Ethernet and Gigabit Ethernet switches available to build up fault tolerant fiber rings.
