Media converter MS40019x series

Ethernetserialfiber optics

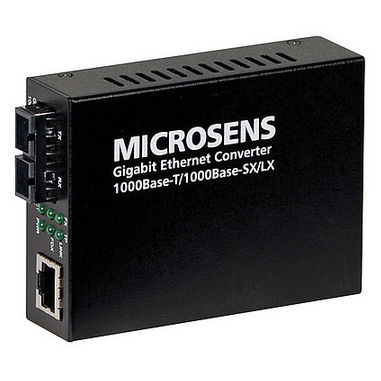

Gigabit Ethernet Converter 1000Base-T/1000Base-X Compact table top unit Media conversion 1000Base-T/1000Base-SX/LX Autonegotiation half- or full duplex-mode, alternatively manual configuration Multimode max. 550 m (50/125µm) Single Mode version up to 100 km, optionally via simplex fiber (WDM) MICROSENS’ Gigabit converter offers a cost effective and fast media conversion from copper (1000Base-T) to fiber optic (1000Base-SX/LX). The direct link enables the extension of twisted pair connections beyond the 100 m limit. The autonegotiation protocol support allows for the automatic configuration of half- and full duplex connections. In addition to this the operating mode can be set manually by means of a DIP switch (full- /half duplex). The converter is available as a tabletop unit with external AC adaptor. Two versions for multimode (1000Base-SX) and singlemode (1000Base-LX) are available. Alternatively the Gigabit converter is available as a modular Access System plug-in unit allowing additional features like management, redundant power supply and up to 100 km reach.
